Permit drawings explained: Texas guide for 2026 projects

Architect marking changes on Texas permit drawing

Understanding permit drawings for Texas construction projects can feel overwhelming, especially when you discover that Texas has no unified statewide permitting system. Each city, county, and extraterritorial jurisdiction sets its own requirements, creating a patchwork of rules that confuse even experienced contractors. Whether you’re planning a residential addition in Houston or a commercial build in Austin, knowing what permit drawings you need and how to prepare them properly saves time, money, and frustration. This guide breaks down the essential components of Texas permit drawings, clarifies residential versus commercial requirements, and provides practical steps to navigate local jurisdictional variations successfully.

Table of Contents

Key takeaways

Point Details
Multiple specialized plans required Permit drawings include site, architectural, structural, MEP, landscape, and compliance documents for complete submission packages.
Local jurisdiction dictates rules Texas operates on a decentralized system where cities, counties, and ETJs set their own specific permitting requirements.
Commercial needs engineer seals Projects exceeding 5,000 square feet require Professional Engineer seals for structural and MEP plans in Texas.
Residential has simpler standards Homeowner projects follow less complex requirements but still demand code compliance and proper documentation.
Accuracy prevents costly delays Clear labeling, consistent scaling, and thorough easement verification ensure smoother approval processes.

Understanding the fundamental components of Texas permit drawings

Permit drawing sets serve as the official blueprint language between property owners, contractors, and building officials. These comprehensive packages communicate design intent, construction methods, and code compliance in standardized visual formats. Every Texas construction project, from backyard decks to multi-story office buildings, requires some combination of these specialized drawings to secure approval and begin work legally.

The core components typically include site plans showing property boundaries, existing structures, proposed improvements, setbacks, and utility locations. Architectural plans detail floor layouts, elevations, cross sections, and finish specifications. Structural drawings illustrate foundation systems, load bearing elements, beam sizes, and connection details. MEP (mechanical, electrical, plumbing) plans map out HVAC systems, electrical circuits, lighting fixtures, water supply lines, and drainage networks. Landscape plans show grading, drainage patterns, tree preservation, and hardscape elements. Compliance documentation includes energy calculations, accessibility reviews, and code reference sheets.

Each component serves a distinct purpose in the approval process. Site plans verify zoning compliance and property line accuracy. Architectural plans confirm livable space calculations and egress requirements. Structural drawings prove load capacity and safety margins. MEP plans demonstrate proper system sizing and safety disconnects. Building officials review these coordinated sets to ensure projects meet International Building Code (IBC) for commercial work, International Residential Code (IRC) for homes, and National Electrical Code (NEC) for all electrical systems.

Texas jurisdictions commonly reference these model codes but adopt them with local amendments and interpretations. Houston might enforce stricter foundation requirements due to expansive clay soils, while coastal cities add hurricane resistant design mandates. Understanding which codes apply in your specific location prevents redesign surprises mid-approval.

Pro Tip: Always include a clear title block on every sheet showing project address, sheet number, revision date, and scale. Use consistent scales across similar drawing types (typically 1/4 inch equals 1 foot for architectural plans) and label every room, dimension, and material specification. Building officials reject incomplete or unclear drawings immediately, adding weeks to your timeline.

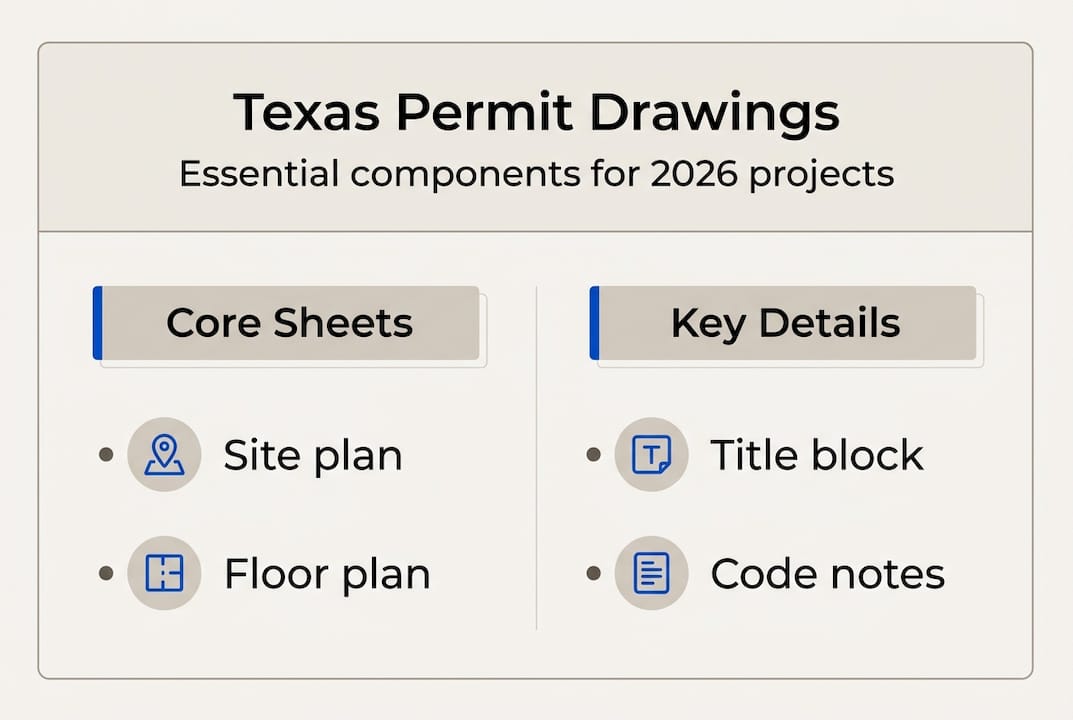

Infographic listing Texas permit drawing essentials

For projects requiring as-built drawings after construction, maintaining organized permit sets throughout the build phase simplifies the documentation process significantly.

The gap between residential and commercial permit requirements in Texas represents one of the most significant planning factors for property owners and contractors. Residential projects governed by IRC allow simplified approaches for single family homes, duplexes, and townhouses under three stories. These projects often permit owner-drawn plans for minor work like room additions or deck installations, though quality and code knowledge remain essential.

Commercial projects fall under IBC jurisdiction, triggering substantially more rigorous requirements. Any building used for business operations, multi-family housing over three stories, or mixed-use developments must meet commercial standards. The complexity escalates quickly with requirements for fire suppression systems, emergency egress calculations, accessibility compliance under ADA standards, and energy modeling documentation.

Project manager comparing commercial and residential permits

The most critical distinction involves professional sealing requirements. Texas mandates Professional Engineer stamps for commercial projects exceeding 5,000 square feet, particularly for structural and MEP systems. Residential projects rarely require engineer seals unless unusual conditions exist, such as building on steep slopes, over existing structures, or in flood zones. Some jurisdictions require architect seals for commercial projects regardless of size, adding another layer of professional involvement and cost.

Aspect Residential Commercial
Governing code IRC IBC, NEC, IMC
Professional seals Rarely required Required over 5,000 sq ft
Plan complexity Moderate High
Review timeline 2 to 4 weeks 4 to 8 weeks
Typical cost $800 to $3,000 $5,000 to $50,000+

Cost differences reflect this complexity gap dramatically. Residential permit drawing packages from qualified drafters typically range from $800 to $3,000 depending on project scope. Commercial packages requiring engineer and architect involvement start around $5,000 for small tenant improvements and escalate to $50,000 or more for ground-up construction.

Homeowners attempting DIY permit drawings for residential work should understand their limitations honestly. While legally permissible for owner-occupied properties in most Texas jurisdictions, poor quality drawings lead to multiple resubmissions, frustrated building officials, and construction errors. Professional drafting services or experienced engineering teams provide value through first-time approval rates and constructible designs.

Commercial property owners have no DIY option. Licensed professionals must prepare and seal all drawings, making early engagement with qualified engineers and architects essential for realistic budgeting and scheduling.

How local jurisdiction impacts permit drawing requirements in Texas

Texas operates without a centralized state permitting authority, creating a fragmented landscape where local jurisdictions independently establish construction requirements. This decentralization means identical projects in neighboring cities can face completely different drawing requirements, approval processes, and inspection protocols. Understanding your specific jurisdiction’s expectations before preparing permit drawings prevents expensive redesign work and timeline delays.

Three primary jurisdiction types govern Texas properties. City limits represent incorporated municipalities with full planning and zoning authority. These cities maintain dedicated building departments, adopt local code amendments, and enforce specific drawing standards. Extraterritorial jurisdictions (ETJs) extend city planning control into unincorporated areas surrounding city boundaries, typically one to five miles depending on population. Counties govern truly rural unincorporated areas, though Texas counties have limited regulatory authority compared to other states.

Jurisdictional boundaries create practical complications for property owners. A lot purchased just outside city limits might fall under ETJ control, requiring city permit approval despite no city services. Annexation can shift properties from county to city jurisdiction mid-project, triggering new requirements. Some counties have minimal permitting requirements, while others near major metro areas enforce standards nearly identical to neighboring cities.

Drawing requirements vary significantly across these jurisdictions. Austin requires detailed energy calculations and green building compliance for all projects. San Antonio emphasizes water conservation documentation and native landscaping plans. Houston focuses heavily on foundation design due to expansive clay soils and requires specific engineering details. Smaller cities might accept hand-drawn plans for minor residential work, while major metros demand CAD-generated professional drawings exclusively.

Pro Tip: Before purchasing property or finalizing project designs, contact the local building department directly to obtain their current permit checklist and drawing requirements. Request sample approved permit sets if available. Verify easement locations, floodplain designations, and utility availability early, as these factors dramatically impact site planning and can render properties unbuildable or require expensive mitigation measures.

Floodplain regulations deserve special attention in Texas. Properties within FEMA-designated flood zones trigger additional drawing requirements including elevation certificates, flood-resistant construction details, and sometimes hydraulic studies. Coastal jurisdictions add wind load calculations and storm surge considerations. Ignoring these location-specific factors leads to permit denials and costly redesigns.

Working with civil engineering professionals familiar with your specific jurisdiction provides significant advantages. Local engineers understand unwritten preferences of building officials, know which details trigger scrutiny, and maintain relationships that facilitate smoother approval processes.

Practical guidance for preparing and reviewing permit drawings for Texas projects

Creating permit-ready drawings requires attention to technical accuracy, code compliance, and presentation clarity. Following systematic preparation steps and avoiding common mistakes dramatically improves approval rates and reduces frustrating resubmission cycles. Whether hiring professionals or attempting owner-drawn residential plans, these practical guidelines ensure your permit package meets Texas standards.

Start by gathering comprehensive site information. Obtain a current survey showing property boundaries, easements, existing structures, topography, and utility locations. Verify zoning designation, setback requirements, maximum building coverage, and height restrictions with your jurisdiction. Check for deed restrictions, homeowner association rules, or historic district regulations that might impose additional constraints beyond building codes.

Develop drawings using appropriate scales and sheet sizes. Standard architectural scales of 1/4 inch or 1/8 inch per foot work for most residential plans. Site plans often use 1 inch equals 20 feet or similar scales depending on lot size. Use 24 by 36 inch sheets for professional submissions, though some jurisdictions accept 11 by 17 inch sets for simple residential work. Maintain consistent scales across related drawings and clearly label the scale on every sheet.

Recommended permit drawing checklist:

Drawing type Required elements Common mistakes
Site plan Property lines, setbacks, existing/proposed structures, utilities, drainage Missing easements, incorrect setbacks
Floor plans Room labels, dimensions, door swings, window sizes, egress paths Undersized egress windows, missing dimensions
Elevations Exterior materials, heights, grade lines, roof pitches Inconsistent with floor plans
Foundation Footing sizes, reinforcement, soil bearing, anchor bolts Inadequate depth, missing engineering
Electrical Panel location, circuit layout, outlet/switch placement, lighting Insufficient circuits, improper spacing

Label every element clearly and consistently. Room names, dimensions, materials, and specifications should appear wherever relevant. Include door and window schedules listing sizes, types, and quantities. Add general notes explaining construction methods, material grades, and code compliance strategies. Reference specific code sections when designs deviate from prescriptive requirements or use alternative compliance methods.

Verify dimensional accuracy obsessively. Wall thicknesses, room sizes, and overall building dimensions must reconcile across all plan views, elevations, and sections. Interior dimensions should add up to exterior dimensions accounting for wall thicknesses. Mismatched dimensions raise red flags for building officials and suggest careless preparation.

Document existing conditions thoroughly for remodel or addition projects. Show existing walls to remain, walls to be demolished, and new construction clearly using different line weights or shading. Include photos of existing conditions when helpful for understanding complex situations.

Pro Tip: Common permit drawing mistakes include missing structural details for beam connections, inadequate foundation specifications for local soil conditions, undersized egress windows in bedrooms, insufficient electrical circuits for modern loads, and missing energy compliance calculations. Review successful construction plan examples from your jurisdiction before finalizing your drawings to understand local expectations and avoid these pitfalls.

Schedule pre-submittal meetings with building officials when tackling complex or unusual projects. Most jurisdictions offer this service to review preliminary drawings, identify potential issues, and clarify requirements before formal submission. This informal feedback prevents wasted effort on non-compliant designs.

Organize your complete permit package logically with a cover sheet listing all included drawings and documents. Include structural calculations if required, energy compliance forms, product specification sheets for critical components, and any variance or exception requests with supporting justification. Submit complete packages to avoid immediate rejections for missing items.

Explore engineering and inspection services for your Texas project

Navigating Texas permit drawing requirements becomes significantly easier with experienced professional support. Whether you need complete construction plan development, engineer seal services for commercial projects, or expert review of owner-prepared residential drawings, specialized engineering firms provide valuable guidance throughout the permitting process.

https://texaslicensedengineers.com

Texas Licensed Engineers offers comprehensive services for both residential and commercial projects across Houston, Austin, Dallas, San Antonio, and throughout Texas. Our team prepares permit-ready construction plans that meet local jurisdiction requirements, provides Professional Engineer seals when required, and conducts thorough structural inspections to verify code compliance. We also assist with forensic investigations, foundation assessments, and drainage solutions when existing structures face challenges. Understanding how engineers facilitate the permitting process helps property owners make informed decisions about professional involvement. Contact our team to discuss your specific project needs and ensure your permit drawings meet all applicable Texas requirements for successful approval.

Frequently asked questions

What are permit drawings and why are they required in Texas?

Permit drawings are detailed construction plans submitted to local building departments for review and approval before starting work. Texas requires them to verify projects meet safety codes, zoning rules, and accessibility standards. They protect public welfare by ensuring proper structural design, electrical systems, plumbing, and fire safety measures.

Do I need an engineer to prepare permit drawings for my Texas home project?

Most residential projects under IRC jurisdiction do not legally require engineer involvement unless dealing with complex structural conditions, steep slopes, or flood zones. However, professional engineers or experienced drafters produce higher quality drawings that gain faster approvals and prevent construction errors. Commercial projects over 5,000 square feet must have engineer-sealed structural and MEP plans.

How long does permit drawing review take in Texas?

Review timelines vary dramatically by jurisdiction and project complexity. Simple residential permits in smaller cities might clear in two weeks, while complex commercial projects in major metros can take two months or longer. Incomplete submissions, code violations, or missing documentation extend timelines significantly. Pre-submittal meetings and complete initial packages speed the process.

Can I submit hand-drawn permit drawings in Texas?

Some smaller jurisdictions and counties accept neat hand-drawn plans for simple residential work, but most cities require professional CAD-generated drawings. Hand-drawn plans must still meet all technical requirements including accurate scaling, complete dimensions, proper labeling, and code compliance documentation. Computer-generated drawings generally receive faster approvals and fewer questions.

What happens if my permit drawings get rejected?

Building departments issue correction lists explaining deficiencies when drawings fail to meet requirements. You must revise and resubmit addressing all noted issues. Multiple resubmissions are common for complex projects or inexperienced applicants. Working with professionals familiar with local requirements minimizes rejection cycles and associated delays.
