Commercial site plans for Texas: a compliance guide

Architect examining Texas commercial site plans

Many Texas business owners assume commercial site plans follow a simple, statewide template. The reality is far more complex. Each jurisdiction enforces unique requirements that directly impact your project timeline and budget. Understanding these variations is essential for securing permits efficiently and avoiding costly delays. This guide breaks down what commercial site plans entail, which elements matter most, and how to navigate the fragmented regulatory landscape across Texas cities and counties.

Table of Contents

Key Takeaways

Point Details
Jurisdictional variation Local rules for commercial site plans vary by city and county in Texas and can override statewide standards, impacting timelines and costs.
Timelines vary Approval timelines range from two to twelve months depending on jurisdiction and how complete the initial submission is.
Core plan elements Plans must include scale and north arrow, property lines and dimensions, setbacks, easements, drainage information, parking layouts, and utility routes.
Pro submittal checklist Request the local site plan checklist before design to prevent omissions that trigger resubmittals and delays.
Engineer seals for large projects Larger developments typically require plans sealed by a Texas Professional Engineer to validate structural and civil compliance while smaller projects may use simplified submittals.

What are commercial site plans and why are they critical for Texas projects?

Commercial site plans in Texas are graphical representations showing property layout, structures, setbacks, access, easements, and dimensions to verify compliance with local codes for building permits. These detailed maps serve as the foundation for obtaining construction approval from city or county authorities. Without an accurate site plan that meets local specifications, your project cannot move forward.

These plans confirm that your proposed development adheres to zoning regulations, drainage requirements, fire access standards, and parking minimums. They also document existing conditions like utilities, easements, and floodplain boundaries that affect construction feasibility. The level of detail required varies dramatically based on jurisdiction, project size, and building type.

Core elements typically include:

  • Scale and north arrow for orientation
  • Property lines with precise dimensions
  • Setback measurements from all boundaries
  • Existing and proposed structures with square footage
  • Driveway access points and circulation patterns
  • Utility easements and right-of-way designations
  • Floodplain and drainage information
  • Parking layout with space counts
  • Landscaping calculations and buffer zones

Larger commercial buildings usually require plans sealed by a Texas Professional Engineer to validate structural and civil engineering compliance. Smaller projects or additions may qualify for simplified submittal requirements, but this depends entirely on local ordinances.

Pro Tip: Request the specific site plan checklist from your local jurisdiction before starting design work. This prevents omissions that trigger resubmittals and delay approvals.

The approval speed for your practical examples of site plans directly correlates with how well your initial submission addresses local requirements. Incomplete or non-compliant plans enter review cycles that can extend timelines by months.

Core elements of Texas commercial site plans: components and requirements

Texas jurisdictions demand specific information on commercial site plans, though the exact mix varies by location and project scope. Understanding which elements apply to your situation prevents costly rework.

Core elements typically include scale/north arrow, property lines/dimensions, setbacks, existing/proposed structures, driveway access, easements, floodplain/drainage info, parking, and landscaping calculations. Each component serves a distinct compliance function during the review process.

Element Purpose Common Exceptions
Setbacks Verify distance from property lines Variances for infill development
Drainage info Confirm stormwater management Small additions under 500 sq ft
Parking layout Validate code-required space counts Shared parking agreements
Landscaping Meet buffer and screening requirements Exemptions for industrial zones
Utility easements Document access for infrastructure Private utility arrangements

Setback requirements establish minimum distances between your building and property boundaries. These measurements protect fire access, preserve sight lines, and maintain neighborhood character. Violations here trigger automatic rejections.

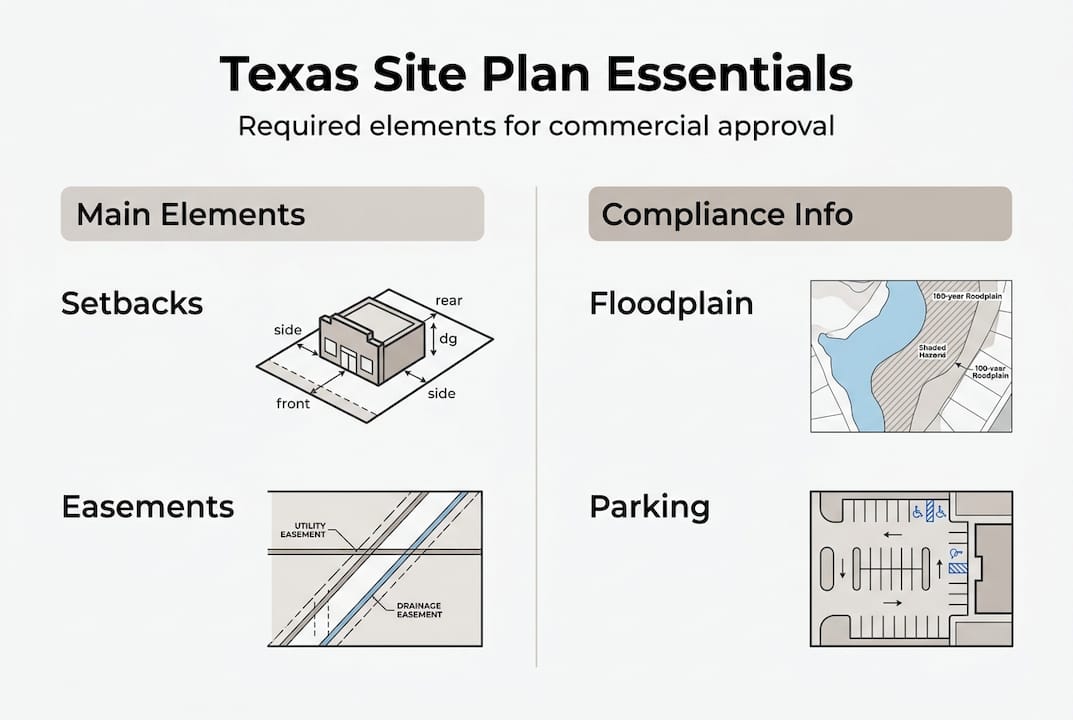

Infographic showing Texas site plan essentials

Easements identify areas where utility companies, drainage districts, or adjacent property owners hold access rights. Your site plan must clearly mark these zones because you cannot build permanent structures within them. Missing easement documentation causes significant review delays.

Floodplain and drainage information proves your project will not worsen flooding conditions for neighboring properties. Texas municipalities scrutinize this element closely due to recurring storm events. You must show how stormwater runoff will be managed through detention ponds, improved drainage, or other engineered solutions.

Parking calculations demonstrate compliance with minimum space requirements based on building use and square footage. Retail, office, and warehouse uses each carry different ratios. Your plan must show space dimensions, aisle widths, and accessible parking locations.

Landscaping requirements vary widely but generally mandate buffer zones, street trees, and screening for parking areas. Some cities provide calculation worksheets while others reference landscape ordinances with complex formulas.

Pro Tip: Larger commercial buildings typically require sealed plans by a Texas Professional Engineer. Confirm the square footage threshold with your jurisdiction early to budget for engineering fees appropriately.

For detailed guidance on engineering standards, review key tips for Texas commercial property engineering and understand the purpose of construction plans in the permitting workflow.

The path from site plan submission to permit issuance involves multiple agencies and review stages. Understanding this process helps you set realistic timelines and anticipate bottlenecks.

City planner sorting site plan paperwork

Texas commercial site plans follow a jurisdiction-dependent process involving city limits, extraterritorial jurisdiction (ETJ), or unincorporated areas, with platting, site plan review, permit submittal, and multi-agency checks from planning, drainage, and fire departments. Each jurisdiction applies its own ordinances, creating significant procedural variation across the state.

The typical review sequence follows these stages:

  1. Preliminary consultation with planning staff to confirm zoning and general feasibility
  2. Platting or replat approval if property boundaries change or lot consolidation occurs
  3. Site plan submittal with all required elements and supporting documentation
  4. Multi-agency review involving planning, public works, drainage, fire marshal, and sometimes health departments
  5. Comment letter issuance identifying deficiencies or requested revisions
  6. Resubmittal addressing all comments with marked-up plans showing changes
  7. Final approval and permit issuance once all agencies sign off

Plan review takes 2-6 months with full permitting extending up to 12 months in complex cases. Projects involving floodplain development, traffic impact studies, or variances consistently hit the longer end of this range.

Drainage and floodplain concerns represent the most common delay triggers. If your site lies within a 100-year floodplain or increases impervious cover significantly, expect additional engineering requirements and longer review cycles. Some jurisdictions require third-party drainage studies that add weeks to the timeline.

Driveway access standards also cause frequent plan rejections. Sight distance requirements, curb cut spacing, and turning radius specifications differ between cities. What works in Houston may violate Fort Worth standards.

“Most commercial projects in major Texas cities should budget at least six months for the complete plan review and permitting process. Complex sites with drainage issues or multiple variance requests often extend beyond nine months before construction can begin.”

Unincorporated areas generally impose lighter requirements since county regulations tend to be less detailed than municipal codes. However, deed restrictions and homeowner association rules may fill this gap with private requirements that are just as stringent.

State facilities follow Texas Department of Licensing and Regulation (TDLR) rules rather than local ordinances, creating a parallel approval track. For insights into regulatory differences, explore commercial vs residential engineering in Texas and review this commercial waterproofing step-by-step guide for process parallels.

Local variations and edge cases in Texas commercial site planning

Texas lacks statewide uniformity in commercial site plan requirements. Local rules take precedence, creating a patchwork of standards that developers must navigate carefully.

Jurisdiction Type Typical Requirements Review Authority Common Variations
City limits Full site plan with all elements City planning/engineering Detailed checklists, strict drainage rules
ETJ City standards apply City (with limitations) Some cities waive landscaping in ETJ
Unincorporated Minimal county requirements County Often limited to septic and access
State facilities TDLR standards State agency Bypasses local jurisdiction

Edge cases include ETJ rules, deed restrictions, HOA requirements, drainage and floodplain complications (the most common rejection cause), and varying driveway standards, with lighter requirements in unincorporated areas and TDLR oversight for state facilities. These nuances significantly impact plan approval likelihood.

Extraterritorial jurisdiction creates unique complications. Cities can enforce planning standards in unincorporated areas surrounding their boundaries, but enforcement authority varies. Some cities require full compliance while others apply modified standards. Always verify which rules govern your specific ETJ location.

Deed restrictions and HOA covenants operate independently of government regulations. A site plan that satisfies city requirements may still violate private restrictions on building height, architectural style, or use intensity. Review all recorded deed restrictions before finalizing your design.

Drainage and floodplain issues cause the majority of plan rejections across Texas jurisdictions. Properties that increase impervious cover must demonstrate adequate stormwater detention. Sites in floodplains face elevation requirements and flood-proofing standards that add substantial costs. Engineers must provide detailed grading plans and runoff calculations to satisfy reviewers.

Driveway and access standards vary dramatically between municipalities. Minimum spacing between curb cuts, required turning radii for fire trucks, and sight distance calculations all differ. Houston applies different standards than Austin or San Antonio. Verify local public works standards early in the design process.

Pro Tip: Schedule a pre-submittal meeting with planning and engineering staff to discuss edge cases specific to your property. This informal consultation identifies potential issues before you invest in detailed plans.

Unincorporated county areas typically require only basic site information focused on septic system approval and road access adequacy. However, this simplified process offers no protection from deed restrictions or future annexation by neighboring cities.

For permit-specific guidance, reference permit drawings explained to understand how site plans integrate with broader construction documentation.

How Texas Licensed Engineers can simplify your commercial site planning

Navigating Texas commercial site plan requirements demands expertise in local codes, engineering standards, and review processes. Texas Licensed Engineers provides specialized support for business owners and developers facing these complex compliance challenges.

Our structural inspection checklist essential steps helps identify potential site constraints before plan development begins. Early engineering involvement prevents costly redesigns when hidden issues emerge during review.

https://texaslicensedengineers.com

We assist with plan preparation, review coordination, and comment response to keep your project moving efficiently. Our team understands jurisdiction-specific requirements across Houston, Austin, Dallas, San Antonio, and other Texas markets. This local knowledge streamlines approvals and reduces revision cycles.

Explore our construction plans key insights and permit drawings guide Texas for detailed resources that complement your site planning efforts. Proactive engineering consultation optimizes both compliance and project efficiency.

Frequently asked questions

What is the typical timeline for commercial site plan approval in Texas?

Plan review usually takes 2-6 months depending on project complexity and jurisdiction workload. Complex projects involving floodplain development, traffic studies, or variances may require up to 12 months for full permitting. Budget additional time for resubmittals if initial plans have deficiencies.

Do all Texas cities require the same elements in commercial site plans?

No. Requirements vary widely by city and jurisdiction, with local rules taking precedence over state-level guidance. Houston operates without zoning but enforces detailed ordinances, while Austin and Fort Worth maintain comprehensive checklists. Always confirm specific requirements with your local planning department.

What common issues cause commercial site plan rejections in Texas?

Drainage and floodplain compliance issues top the rejection list across Texas jurisdictions. Inadequate stormwater management plans, missing floodplain documentation, and driveway access standard violations frequently trigger resubmittal requirements. Incomplete easement information and parking calculation errors also cause delays.

When do commercial projects require a Texas Professional Engineer seal?

Most jurisdictions require PE-sealed plans for commercial buildings exceeding specific square footage thresholds, typically 5,000 to 10,000 square feet depending on the city. Structural, civil, and sometimes MEP engineering disciplines may need separate seals. Small additions or tenant improvements often qualify for exemptions, but verify local requirements early.

How do extraterritorial jurisdiction rules affect commercial site plans?

ETJ areas fall under city planning authority even though they lie outside city limits. Cities can enforce site plan standards, subdivision regulations, and sometimes building codes in these zones. However, enforcement mechanisms and specific requirements vary by city. Some municipalities apply modified standards in ETJ areas compared to full requirements within city limits.
